All-City New Sheriff SL Hubs

All-City New Sheriff SL Hubs
  • Model: Fixed/Fixed Rear
  • Model: Fixed/Fixed Rear
  • Model: Front
  • Model: Front
  • Model: Fixed/Free Rear
  • Model: Fixed/Free Rear
$85.00 - $109.99
Color:
Model: Select model
Hole Count: Select hole count
Please select options Unavailable

Details

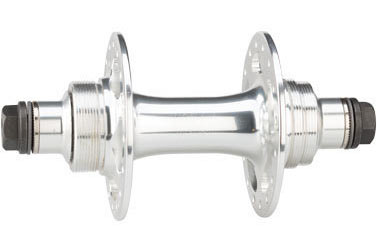

New Sheriff hubs are the ultimate in track racing hubs. They minimize weight with larger cutouts in the flanges, lightened axles, shorter bolts, and slimmer end caps than previous versions. The result is a hubset that weighs a mere 432g, 198g for the front, and 234g for the rear. This makes it one of the lightest track hubsets in the world, a figure even more impressive when you consider that All-City didn't eliminate the usefulness of a fixed / fixed or fixed / free option as most racing hubs do.

They feature the finest Japanese manufactured 6902 bearings which roll incredibly fast and smooth while retaining excellent seals for all weather, all-day everyday durability.

Front hub specs:

- Weight: 198g
- Torque Spec: 33nm (25ft lbs.)
- Non-Drive Side Center to Flange: 34mm
- Drive Side Center to Flange: 34mm
- Non-Drive Side Flange Diameter: 62mm
- Drive Side Flange Diameter: 62mm

Rear hub specs:

- Weight: 234g
- Torque Spec: 33nm (25ft.lbs.)
- Non-Drive Side Center to Flange: 29mm
- Drive Side Center to Flange: 29mm
- Non-Drive Side Flange Diameter: 62mm
- Drive Side Flange Diameter: 62mm

Part Numbers

Option UPC MPN Store SKU
Black / 32 / Front 708752120495 HU4706
Black / 32 / Fixed/Free Rear 708752120440 HU4718
Silver / 28 / Front 708752120501 HU4705
Silver / 28 / Fixed/Fixed Rear 708752120471 HU4715 210000004508
Silver / 32 / Fixed/Free Rear 708752120457 HU4717
Silver / 32 / Front 708752120488 HU4707
